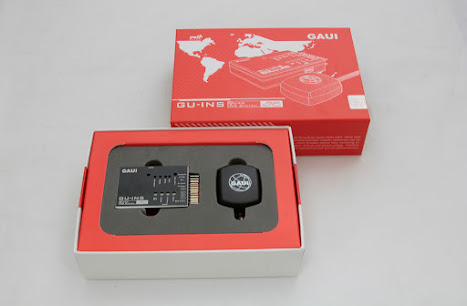

GAUI GU-INS Datasheet
●GAUI GU-INS supports X-type flying Quad-copter (GAUI 330X, 500X, etc…).
●OSD (On-screen display, optional purchase module) electronics can be connected to GU-INS, which provides precise data monitoring on altitude, distance, position, attitude and battery voltage.
●Onboard USB interface connector for firmware updates.
●Interface provided to connect with standard receiver and JR satellite receiver.
●Specifications：
1.Dimensions：Main controller: 53.5 x 38.5 x 12mm GPS antenna: 42 x 34 x 15mm Weight：Main controller: 27g (w/o cables ), GPS antenna: 23g (with cable)
2.Frequency: 400Hz output to ESC
3.Operating temperature: -20~80°C
4.Operating modes: Rate (manual) mode, Auto balance mode, GPS positioning mode.
5.Rate (manual) mode: Max angular velocity: 300 degree/sec
6.Auto balance mode: Max tilt angle: 60 degree.
7.GPS positioning mode:
a.Hovering accuracy: Horizontal: ±1m, Vertical: ±0.5m
b.Max yaw angular velocity: 250 degree/sec
c.Max tilt angle: 45 degree.
d.Max horizontal speed: 10 m/s，36 km/hr
e.Max vertical speed: 8 m/s (horizontal posture)
8.GU-INS provides pitch and rolls output signals, can work with different types of camera mounts.
9.Fail-safe functions: Automatic Go-Home, Signal lost Go-Home, Low voltage protection.
10.Suitable wind condition: < 10 m/s
●Features:
1.Easy to install and setup, no need of software on PC for adjustment.
2.All functions can be setup & confirmed by LED lights indication.
3.All in one design (combined inertial measurement unit and main controller) with simple cable wiring.
